Prerequisites

This tutorial will use the Blitz mqtt monitoring tool, available here.

You need to have an mqtt broker set up and running. Both the device and the GUI, or Blitz in this case, will connect to it.

Connect device

In this tutorial you will learn to communicate with the system. You will send messages manually with the Blitz tool and observe how the device responds. You will send the same commands that a GUI will send, and make sure the device responds correctly.

A real GUI will periodically ping for devices. It does so by publishing { value: "1" } to the publish_all_connected topic. Your device must respond by publishing { id: "your_device_id" } to the device_connected topic. It's not enough to only respond once, because the GUI will think your device has been disconnected if it doesn't receive a message for a period of time.

Blitz

  1. Open the Blitz mqtt monitoring tool.
  2. Connect to your mqtt broker.
  3. Subscribe to the device_connected topic.
  4. At the top of the page in the publish section, input publish_all_connected as the topic and { value: "1" } as the payload.

Now Blitz is setup to monitor the device connection. If you want to confirm that everything is working on Blitzs end, you can publish a message to the device_connected topic to see that it appears in the subscribed topics section.

Device

  1. Connect to your mqtt broker.
  2. Subscribe to the publish_all_connected topic.
  3. When you receive { value: "1" }, respond by publishing { id: "your_device_id" } to the device_connected topic.
  4. Confirm in Blitz that the device is connected. You should see a message like { "id": "your_device_id" } in the device_connected topic.

Example:

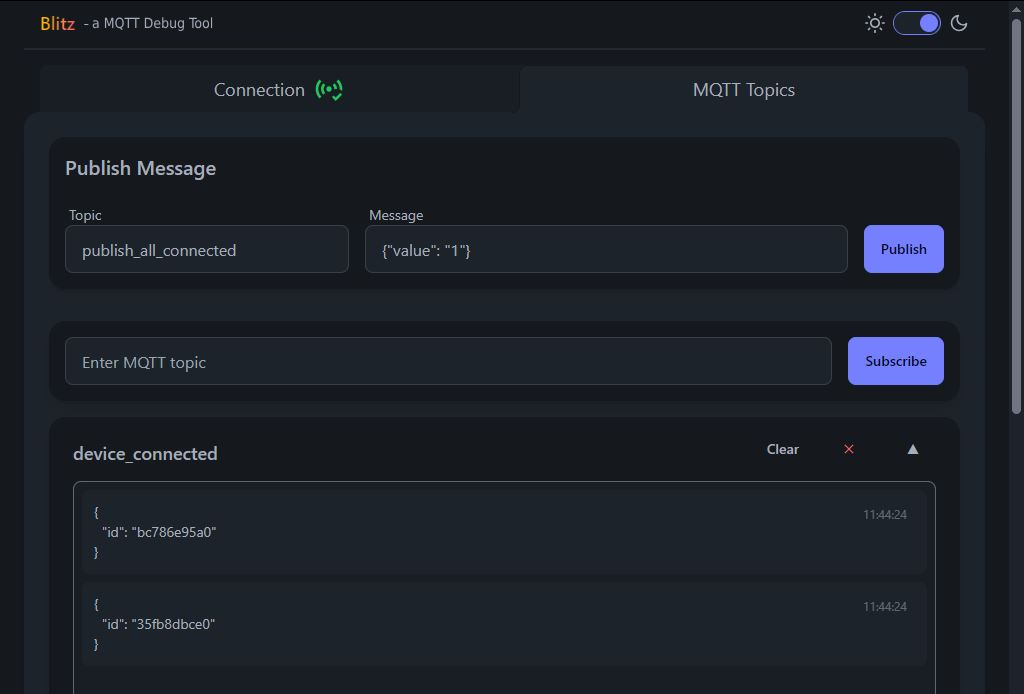

Connected devices.

This picture shows an example of what the response can look like (click to zoom). Two devices reported their ids when the message was sent to publish_all_connected.

Meta data

The metatadata is information about your device and the data it will send. It also contains information about the parameters that your device supports. The parameters will let the gui send values to your device.

To review the structure of the metadata object, see the communication specification.

Blitz

  1. Subscribe to the device_meta topic.
  2. In the decive_connected topic, you can see which device is connected and get their id.
  3. Publish { value: "1" } to the publish_meta/{device_id} topic to request the metadata for a specific device.

Device

  1. Subscribe to the publish_meta/{device_id} topic.
  2. When you receive { value: "1" }, respond by publishing the metadata to the device_meta topic.
  3. Confirm in Blitz that the device is connected. You should see the metatadata in the device_meta topic.

Example:

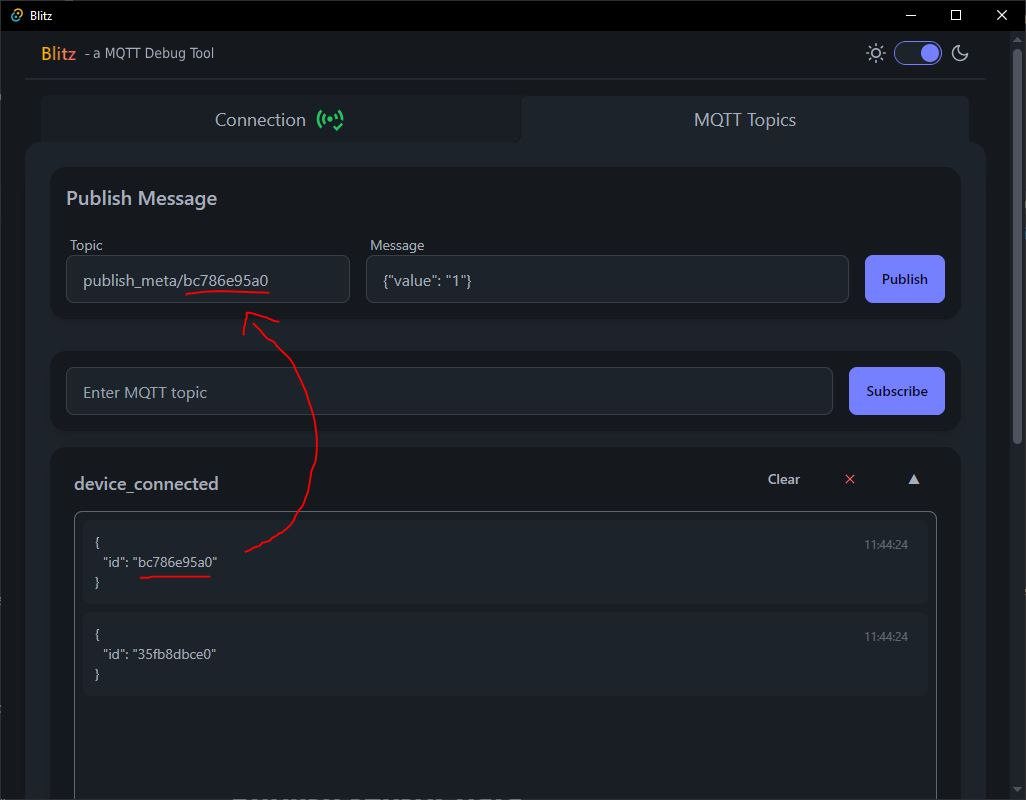

Use metadata to form device specific meta topic.

Use the id in the response to form the topic publish_meta/{device_id}

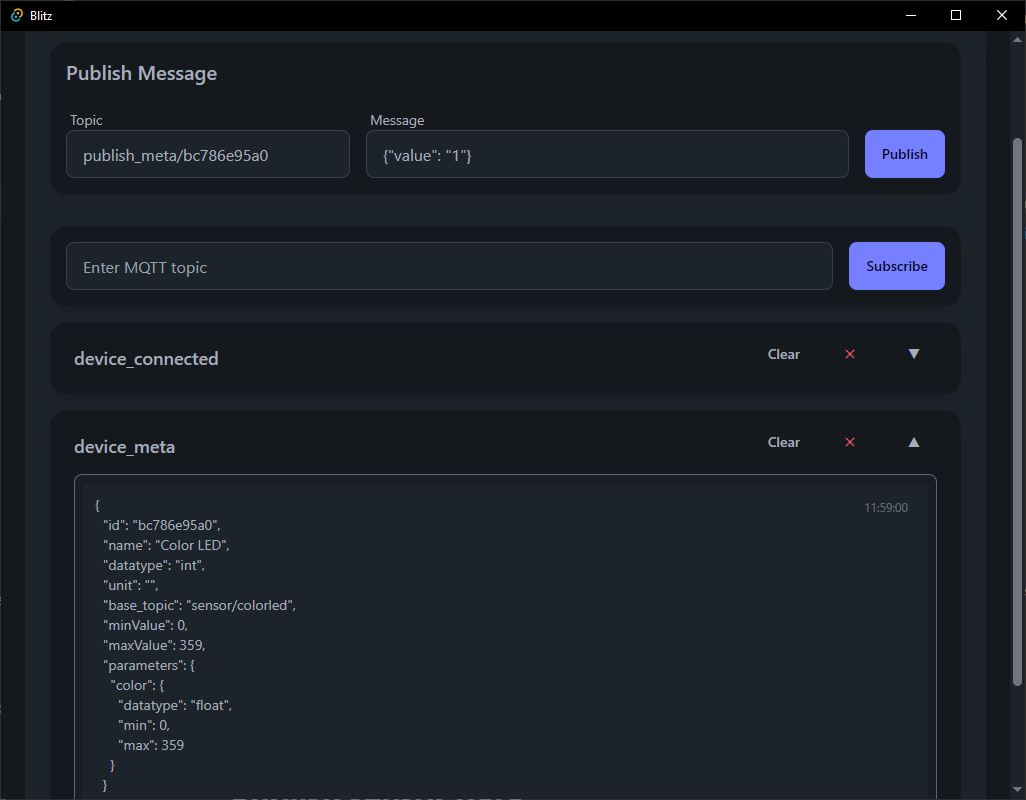

Device meta response.

The device responds with it's metadata.

Publish sensor data

Blitz

  1. Subscribe to the {base_topic}/{device_id} topic. You can find both values in the metadata.

Device

  1. Publish values periodically to the {base_topic}/{device_id} topic. The structure of the message is described in the communication specification.

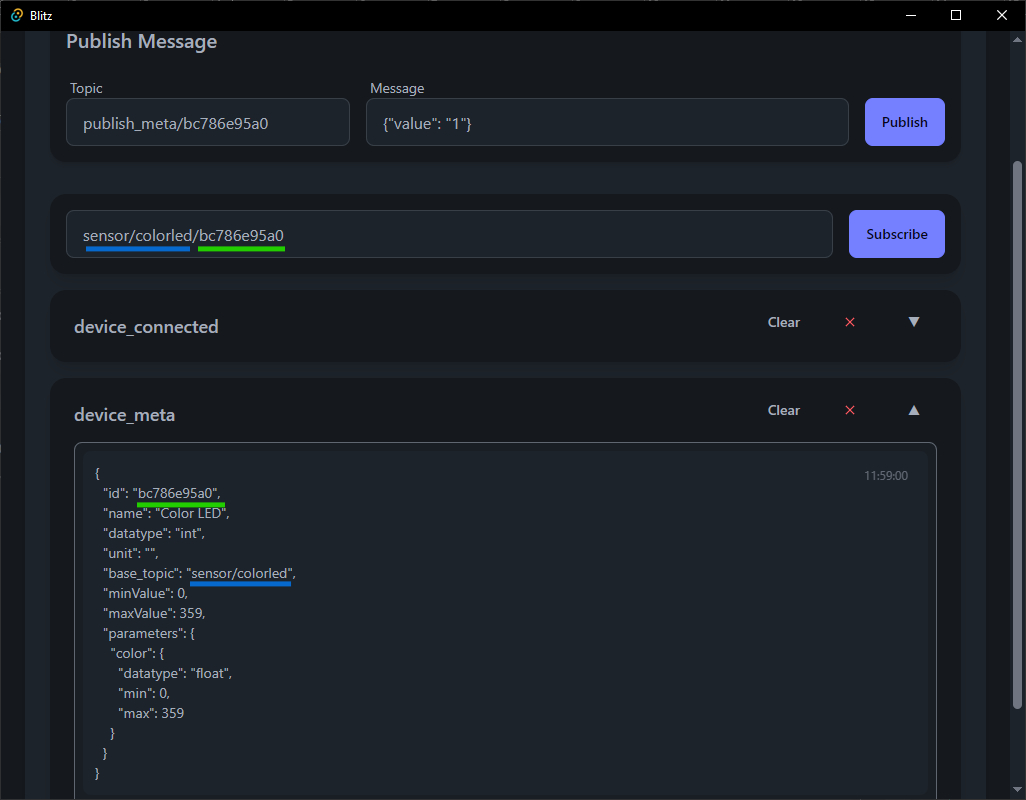

Subscribe to device value topic.

Subscribe to the devices {base_topic}/{device_id} that you can find in the metadata.

Device value response.

You can now monitor the values sent by the device.
